H2602STR-Video microscope-Shenzhen Oseecam Technology Co., Ltd.

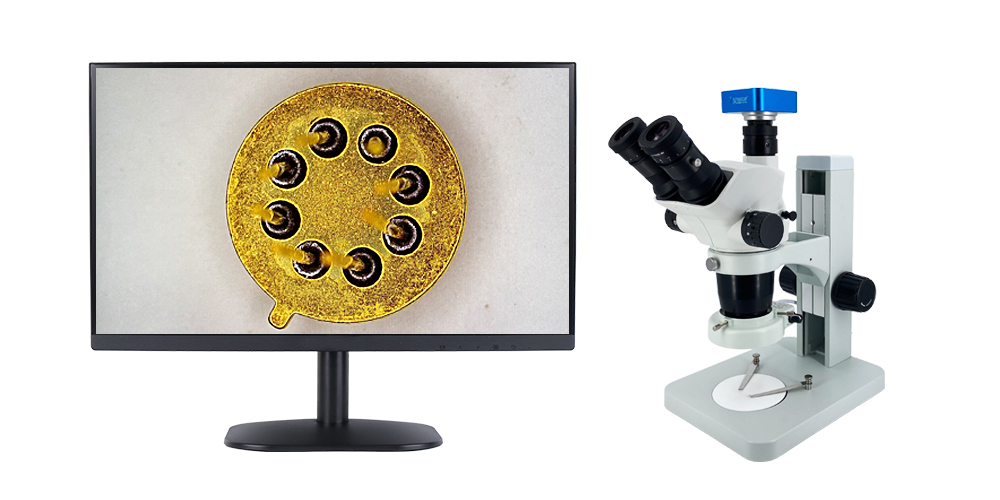

Product name: H2602STR

◆Using 2 million pixels Sony's new generation of high dynamic range CMOS image sensor;
◆Using 1/2 inch image sensor;
◆HDMI 1080P 60 frame image output;
◆USB interface USB2.0 X2 (plug U disk, connect mouse);
◆Lens: HD lens 0.67-4.5X, 10X large field of view eyepiece;
◆The eyepiece has the functions of "pupil phase difference control" and "appropriate positioning" of the eye point;
◆One-key freeze/thaw function;
◆Support manual/one key exposure, exposure compensation value adjustment;
◆Support manual/one-key white balance, red, green and blue adjustable;
◆Provide 8 line drawing functions, the line color, thickness and position are adjustable;
◆Support U disk storage and mouse operation;
◆Support user-defined boot screen;
◆Support horizontal mirroring/roll up and down;
◆Support English/Chinese/Traditional menu language;

Image display
Information

model	H2602STR
sensor	1/2 inch 2 million pixel Sony CMOS sensor
Pixel size	3.75µmx3.75µm
HDMI output	1920*1080 60 frames
USB output	USB2.0* 2 (plug in U disk or mouse)
Lens	HD lens 0.67-4.5X, 10X large field of view eyepiece
multiple	6.7-45 times continuously adjustable
Bracket	White large stroke focusing bracket, adjustable
light source	T60 ring light, adjustable brightness (frosted light source is optional)
monitor	Standard optional 21.5 inch display
Underline	Provide 8 line drawing functions, line color, thickness, position adjustable
Input voltage	DC 5V-12V
Menu language	Support Chinese/English/Traditional language menu (default English)
Mirroring	Support horizontal/up and down flip
storage	Support photo video, U disk storage
