H1606-Industrial Camera-Shenzhen Oseecam Technology Co., Ltd.

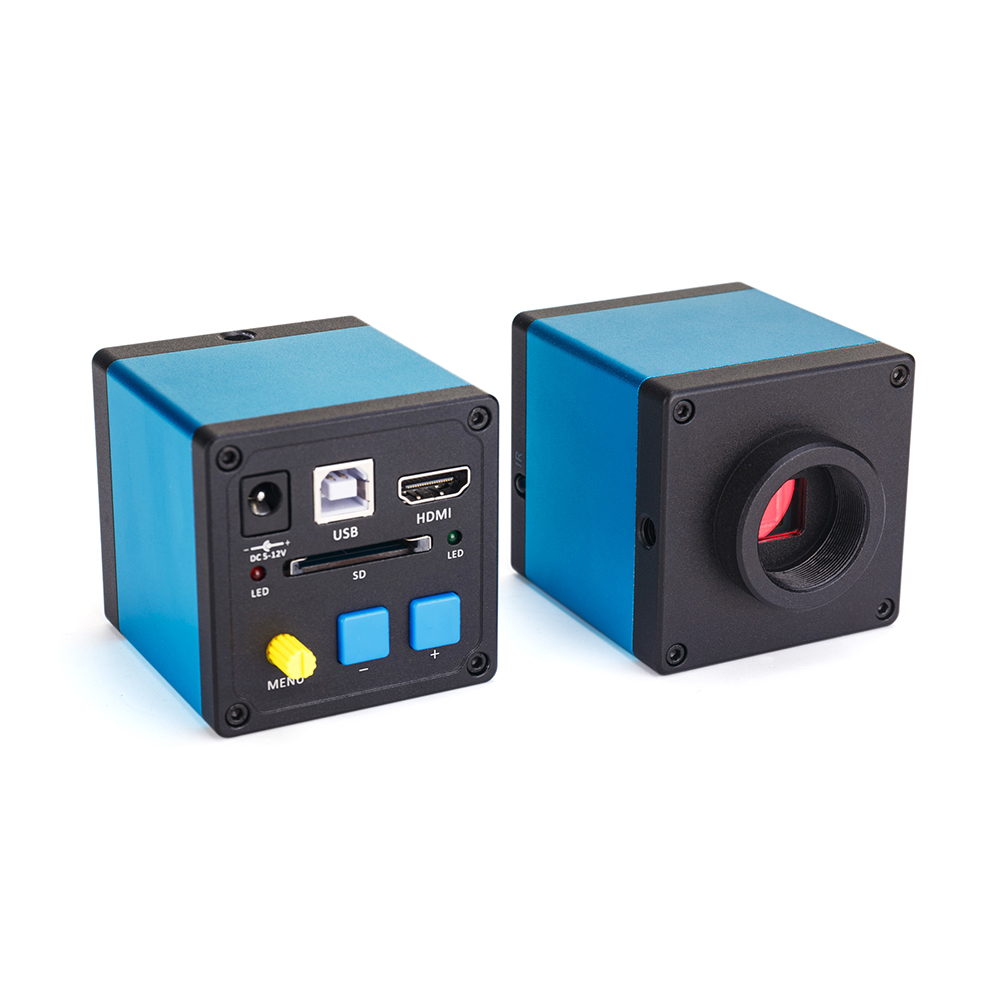

Product name: H1606

◆Using 2 million pixel Sony CMOS image sensor;
◆Using 1/2 inch image sensor;
◆HDMI 1080P 60 frame image output;
◆Support photo, JPG format;
◆Support image freezing;
◆Support electronic zoom function;
◆Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
◆Support manual/auto white balance/one-key white balance, red, green and blue adjustable;
◆Provide 8 line drawing functions, the line color, thickness and position are adjustable;
◆Provide center cross line display/close;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, the picture is clearer without shaking;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Using CNC precision milling technology to process aluminum alloy shell;

Image display
Information

Specifications

sensor	1/2 inch 2 million pixel Sony CMOS sensor
Pixel size	3.75µm ×3.75µm
USB output	1920*1080 30 frames
HDMI output	1920*1080 60 frames
Lens interface	C interface
exposure	Auto/manual/one key exposure
Exposure compensation	support
White balance	Auto/manual/one-key white balance, support RGB adjustable
storage	Maximum support 32GB
Input voltage	DC 5V-12V
Underline	Support 8 straight lines, color, thickness and position are adjustable
Centerline	support
Mirroring	Support horizontal/vertical mirroring
Menu language	English Chinese
remote control	Support remote control operation
net weight	140 grams
Gross weight	330 grams
Product Size	606080mm
Package dimensions	14513070mm
